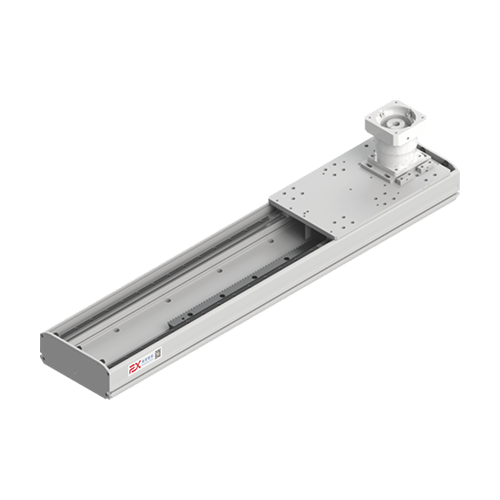

RXZH 270 Rack and Pinion Linear Module
Technical Features
Repeatablity:±0.05
Speed：250-8000mm/s
Payload: max 2000kg
Stroke/Pitch ：500-80000 / 500 mm Pitch.
Advantages
Fully sealed and dustproof design for clean environments
Compact form factor with strong mechanical rigidity
High positioning accuracy and repeatability
Quiet operation and long service life
Maintenance-free design for continuous operation
Excellent balance between size, precision, and reliability
The VGTH5 is engineered for precision automation,
providing stable, contamination-free performance even in the most demanding conditions.
Application
The VGTH5 Ball Screw Module is widely applied in:
Semiconductor processing and inspection equipment
Optical alignment and measurement systems
PCB and micro-electronics assembly lines
Laboratory automation and testing devices
Small robotic arms and precision pick-and-place systems
Medical and biotechnological automation platforms
